JUKI's PLACEMENT SOLUTIONS provide the perfect answer to every requirement in the placement process. Whether it's high-volume production in automotive, medical, or defense industries, or prototyping and small-batch production, JUKI delivers precision in every environment!

Highest JUKI investment security

The purchase of a JUKI placement machine is worthwhile! Now and in the future.

  •  Highest quality standards made in Japan
  • Exceptional system availability over many years
  • Outstanding price/performance ratio
  • Low operating and maintenance costs

Best JUKI productivity

Sophisticated JUKI technologies ensure maximum productivity, also through optimized processes.

  • Fast product changes
  • Unique, efficient placement head technologies (patented Takumi head and Planet Head)
  • Intuitive user interfaces

Maximum JUKI efficiency

JUKI pick and place machines guarantee maximum output.

  • JUKI feeders are flexible all-rounders
  • Large capacity of feeder stations
  • High placement speed of up to 105,000 CPH
  • Highest productivity on the smallest footprint with compact placement machines
  • All component feeding options

Unique JUKI flexibility

JUKI flexibility guarantees fast and reliable adaptation to changing conditions.

  • Smart software within the machine - easy to integrate.
  • JUKI's own smart software solutions for every process step
  • Connection to external software systems
  • Integration into existing machinery
  • SMT and THT assembly in one machine

Flexible Highspeed Placement Machine

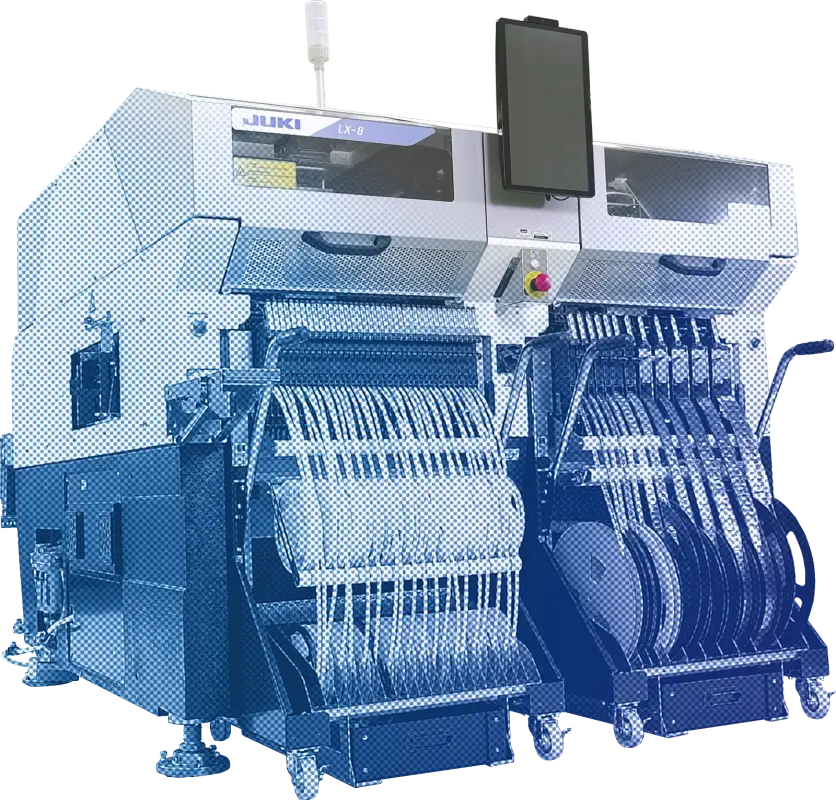

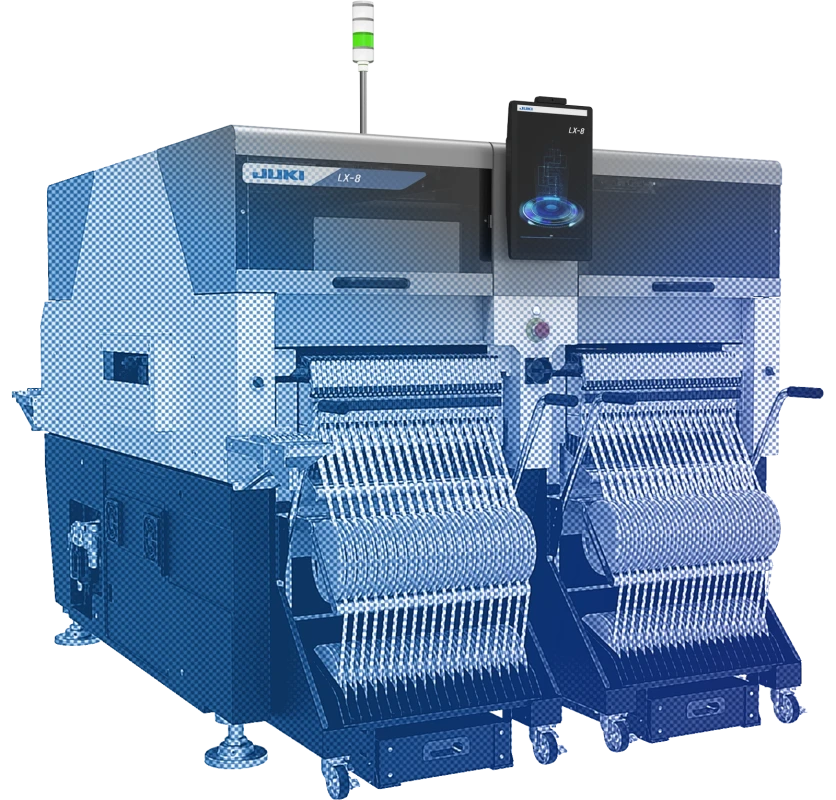

LX-8

The JUKI LX-8 is a real innovation on the placement market. With two independent placement heads in one machine, the LX-8 sets new standards. The heads can be exchanged by the operator himself. The technologically ideal placement head type can be selected and installed quickly and easily to optimize productivity for the respective application.

LX-8 – Flexible Highspeed Placement Machine
Enormous placement flexibility thanks to dual head concept
Space miracle with amazing placement performance
Innovative and intuitive operator guidance
LX-8 – Flexible Highspeed Placement Machine Video
Request Brochure
Specifications

Board Size
50 × 50 mm ~ 410 × 450 mm (single clamping)
                    ~ 810 × 450 mm (single clamping)

Component Height
3 mm (2 x P20 nozzles)
25 mm (P20 + Takumi; 2 x Takumi)

Component Size
0201 ~ 5 mm
03015
~ 5 mm // ~ 65 mm / 10 x 90 mm / 50 x 75 mm

Placement Rate
Optimum:
2 x P20: 105,000 CPH // 65,000 CPH (IPC9850)
P20 + Takumi: 99,500 CPH // 63,500 CPH (IPC9850)
2 x Takumi: 94,000 CPH // 62,000 CPH (IPC9850)

Placement Accuracy
P20: ± 0.04 mm (Cpk ≥ 1)
Takumi: ± 0.035 mm (Cpk ≥ 1)

Feeder Inputs
Tape: max. 160
Tray: max. 60

Power Supply
200 – 415VAC, 3-phase

Apparent Power
2.49 kVA

Operating Air Pressure
0.5 ± 0.05 MPa

Air Consumption
50 L / min

Machine Dimensions (W × D × H)
1.600 × 1,924 × 1,440 mm

Mass (approximately)
2.400 kg oder weniger

Pick & Place Maschine - smart, fast and modular

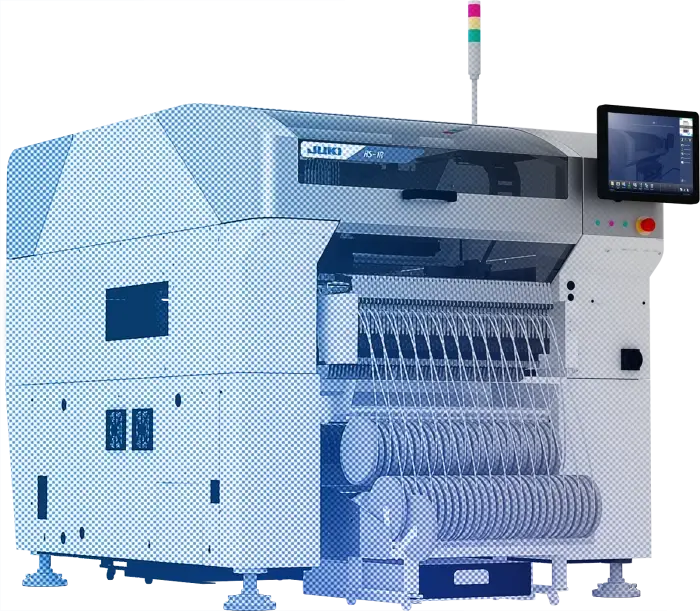

RS-1R

The flexible all-rounder from JUKI!
High-speed chip shooter and sophisticated mounter in one. One machine, one placement head, endless possibilities - always a bull's eye!

RS-1R – Pick & Place Maschine - smart, fast and modular
High flexibility, wide range of components
Patented TAKUMI placement head - one for all
On-the-fly component centering
Highly accurate component measurement
RS-1R – Pick & Place Maschine - smart, fast and modular Video
Request Brochure
Specifications

Board Size
max. 650 mm × 370 mm (single clamping)

Component Height
25 mm

Component Size
0201*2 (metrisch) ~ 74 mm / 50 × 150 mm

Placement Rate
IPC9850: 29,000 CPH

Placement Accuracy
± 0.035 mm (Cpk ≥ 1)

Feeder Spaces
max. 112

Power Supply
200 – 415 VAC, 3-phase

Apparent Power
2.2 kVA

Operating Air Pressure
0,5 ± 0,05 MPa

Air Consumption
max. 50 L / min

Machine Dimensions (W × D × H)
1,500 × 1,810 × 1,440 mm

Mass (approximately)
1.700 kg

*1 250 mm conveyor extension required
*3 When unsing RF Feeders on front and rear

Please refer to product specifications for details.
Specifications and design subject to change without notice.

Placement Machine - smart, fast, modular

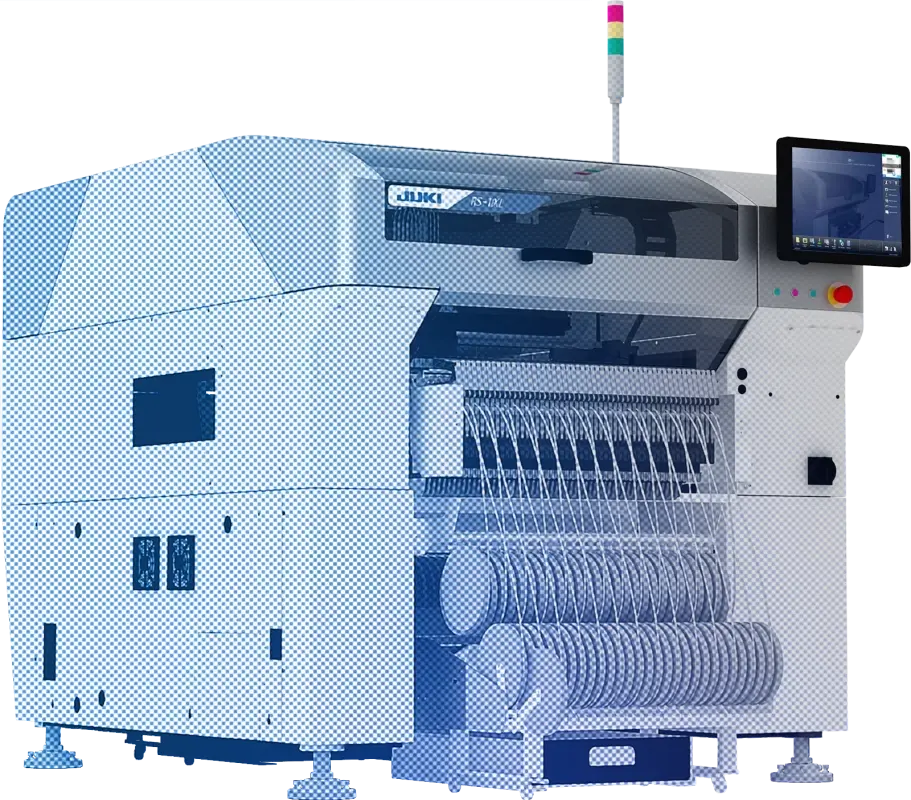

RS-1XL

RS-1XL – Placement Machine - smart, fast, modular
High flexibility and wide range of components
Patented TAKUMI placement head - one for all
On-the-fly component centering
Handling of large PCBs
Request Brochure
Specifications

Board Size
max. 650 mm × 560 mm (single clamping)

Component Height
25 mm

Component Size
0201*2 (metric) ~ 74 mm / 50 × 150 mm

Placement Rate
Nach IPC9850: 29,000 CPH

Placement Accuracy
± 0.035 mm (Cpk ≥ 1)

Feeder Spaces
max. 112*3

Power Supply
200 – 415 V, Dreiphasenwechselstrom

Apparent Power
2.2 kVA

Operating Air Pressure
0.5 ± 0.05 MPa

Air Consumption
max. 50 L / min

Machine Dimensions (W × D × H)
2,109 × 2,000 × 1,490 mm

Mass (approximately)
1.85 t

*1 250 mm conveyor extension required.
*2 Ask for availability.
*3 When unsing RF Feeders on front and rear.

Please refer to product specifications for details.
Specifications and design subject to change without notice.

Highspeed Pick & Place Machine

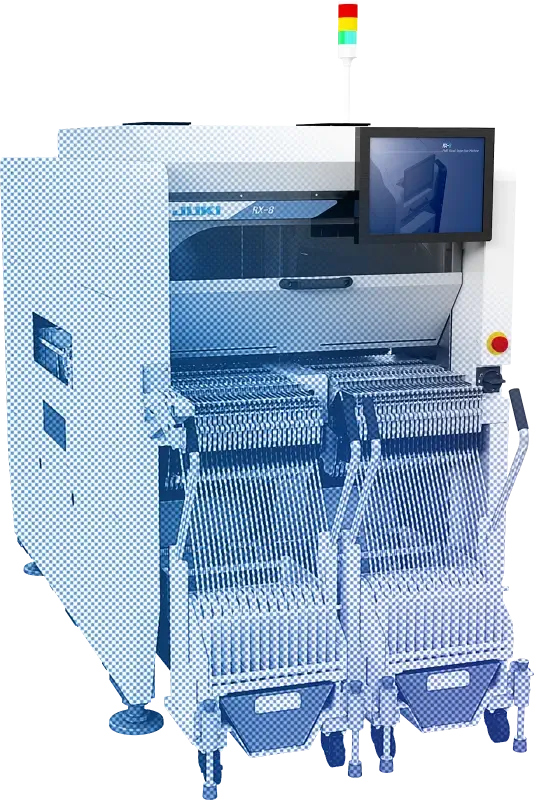

RX-8

The high-speed pick and place machine from JUKI with the best area productivity!
Two high-speed placement heads, each with 20 suction cups, ensure unprecedented productivity over a line length of less than one meter.

RX-8 – Highspeed  Pick & Place Machine
Top speed in a double pack
Highest area productivity
On-the-fly component centering
RX-8 – Highspeed  Pick & Place Machine Video
Request Brochure
Specifications

Board Size
50 × 50 mm ~ 510 × 450 mm (single mode)
50 × 50 mm ~ 510 × 250 mm (dual mode)

Component Height
3 mm (P20 nozzles)

Component Size
P20:
0201 ~ 5 mm

Placement Rate
Optimum:
100,000 CPH (P20)

IPC9850:
55,000 CPH

Placement Accuracy
± 0.04 mm (Cpk ≥ 1)

Feeder Inputs
max. 56

Power Supply
200 – 430 VAC, 3-phase

Apparent Power
2.1 kVA

Operating Air Pressure
0.5 ± 0.05 MPa

Air Consumption
20 L / min

Machine Dimensions (W × D × H)
998 × 1,895 × 1,530 mm

Mass (approximately)
1,810 kg

Please refer to product specifications for details.
Specifications and design subject to change without notice.
