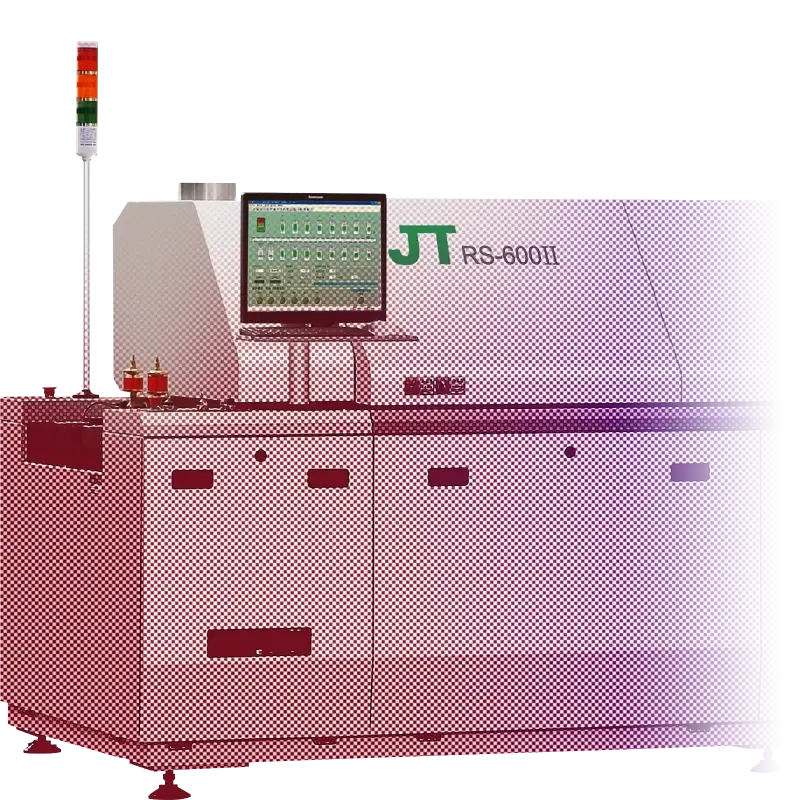

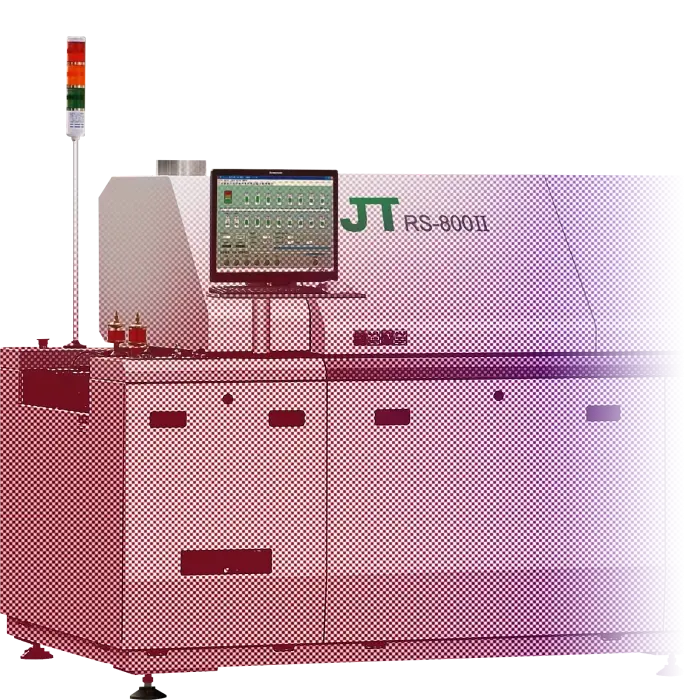

Process Characteristics
Number of Heating Zones 10
Number of Cooling Zones 2
Total heated length 3,900 mm
Total cooled length 800 mm
Temperature Range Heating Zones 20 – 300 °C
High-Temp-Option (up to 350 °C) optional
Separate Top and Bottom control of temperature
Blower Fan top and bottom
Blower Fan frequency separately controllable in zones
Warm-up time approx. 35 Min.
Nitrogen Option optional
External Water Cooling for flux residue standard with nitrogen ovens
∆T Crossprofile < ±2 °C
PCB handling and transport
PCB-width min. 50 mm / max. 460 mm
PCB space top 25 mm / bottom 30 mm
Conveyor speed range 30-200 cm / min
610 mm-PCB-width option
Transport of PCB on Mesh / Pin conveyor chain
Centre Board Support optional
Conveyor direction Righ-Left optional
Machine properties and dimensions
Dimensions (L × W × H) 6,160 × 1,320 × 1,505 mm
Weight 2,600 kg
PC and Software
Operating System Windows 10
Interfaces Ethernet, USB, SMEMA, Cogiscan IFSNx / TTC
Operating Requirements
Voltage Supply 400 V / 3 Phasen
Average power required during warm-up 36 kW / 10 kW
Exhaust Volume 2 × 10 m³ / min
Nitrogen (optional) 5 bar
Operating Environments 5 – 40 °C, 20 – 65 % RH
Standards (selection)
Automatic chain oiling system, UPS, Board-Drop / Jam-Alarm, On-Off-Timer, 3-year JUKI warranty (incl. blower fans / heating elements)
Available options and accessories (selection)
Dual lane configuration, automatic setting of conveyor width and CBS position
Please refer to product specifications for details.
Specifications and design subject to change without notice.
